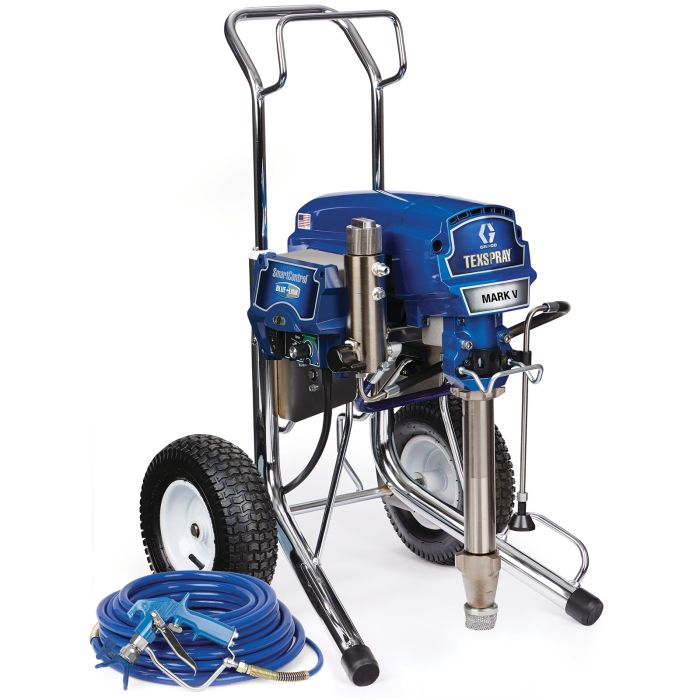

SPRAYER, MARK V, STANDARD

The TexSpray Mark V delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Loading Price
Part Number
17E605
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 24.97ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Endurance Chromex Piston Pump
  • The most reliable pump
  • Lasts 2X longer than the next leading brand
  • Long life ceramic and stainless steel balls included for maximum versatility
  • Faster cleaning with the QuikAccess intake foot valve
MaxFlo 2 with Pack-Out Protection
  • Less pack-out, more productivity
  • Self-cleaning Vibra-Seal Technology eliminates material build-up
  • Continuous spraying with True Pack-Out Protection for more productivity
  • Optimized fluid passageways for the heaviest coatings
BlueLink Job & Sprayer Management System
  • Streamline your business
  • Track every sprayer: Exact location & hourly productivity
  • Know job progress: On demand productivity facts and reporting from anywhere
  • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
SmartControl 4.0 with ProGuard Protection System
  • Precision pressure control
  • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
  • Prevents electrical damage from extreme jobsite power conditions
  • WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low
FastFlush 2 System
  • Fast cleaning now even FASTER
  • Clean the pump 6X faster using ½ the water
  • High-velocity fluid flow delivered with 60% higher motor speed
MaxPower DC Motor & Advantage Drive
  • Maintenance-Free Power
  • Field proven brushless design
  • The Longest Lasting Drive
  • Improved jobsite conditions with extremely quiet operation
WatchDog Pump Protection System
  • Prevents dry pumping damage
  • Automatically shuts pump down when if the material supply is too low
Easy Out Pump Filter
  • Easy Pump Maintenance & Less Clogging
  • Inside-out design means less mess with fewer tip clogs
Heavy-Duty Prime Valve
  • Maintenance-free high-pressure dumping capability
Rugged, Durable Cart Design
  • Rugged and easy-to-move
  • Withstands tough jobsite conditions while absorbing impacts and vibrations
  • Easy hose storage with integrated hose wrap and telescoping handle
  • Easy loading with built-in lift handles
More Information
Long DescriptionTexSpray Mark V Standard Series Electric Airless Sprayer
Application TextEveryday Reliability. TexSpray Mark Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
Length26.25
Height38.5
Width29.5
Number of Guns1
Overall Height (in)38.5
Overall Length (in)26
Overall Width (in)24
Maximum Tip Size Gun 1 (in)0.039
Maximum Working Pressure (psi)3300
Minimum Generator Power (W)5000
Motor TypeMaxPower
Power Rating (HP)2.8
Power Rating (kW)2.09
TypeAirless Sprayer
Voltage (V)120
Volume Per Cycle (cycles/gal)110
Weight (lb)130
Wetted MaterialZinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, PEEK, Stainless Steel, Brass, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, PTFE, Nylon
Recommended Annual Usage100-200 gallons per week
Power Rating (W)2088.0
Power SourceElectric
Pressure Control TypeSmartControl 4.0
Pump Mount TypeQuikChange
Pump Rod TypeChromex
Pump Sleeve MaterialStainless Steel
IncludesHeavy-Duty Blue Texture Gun;RAC X LTX 427 Spray Tip;RAC X LTX 531 Spray Tip;RAC X Guard;3/8 in x 50 ft BlueMax II Airless Hose;1/4 in x 3 ft BlueMax II Airless Whip Hose
Amperage (A)20
ConvertibleNon-Convertible
FeaturesHeavy-Duty Prime Valve, WatchDog, MaxPower Brushless, MaxFlo 2, FastFlush 2, Easy Out Filter, Endurance Chromex Pump, BlueLink System, Advantage Drive, SmartControl 4.0
Compatible Replacement Pump17H829
Fluid Outlet Size (in)3/8
Fluid Outlet Thread TypeNPSM
Maximum Flow Rate (GPM)1.35
Maximum Sound Pressure Level (dB(A))82
Frame ConfigurationHi-Boy
Gun IncludedNo
Maximum Tip Size (in)0.039
