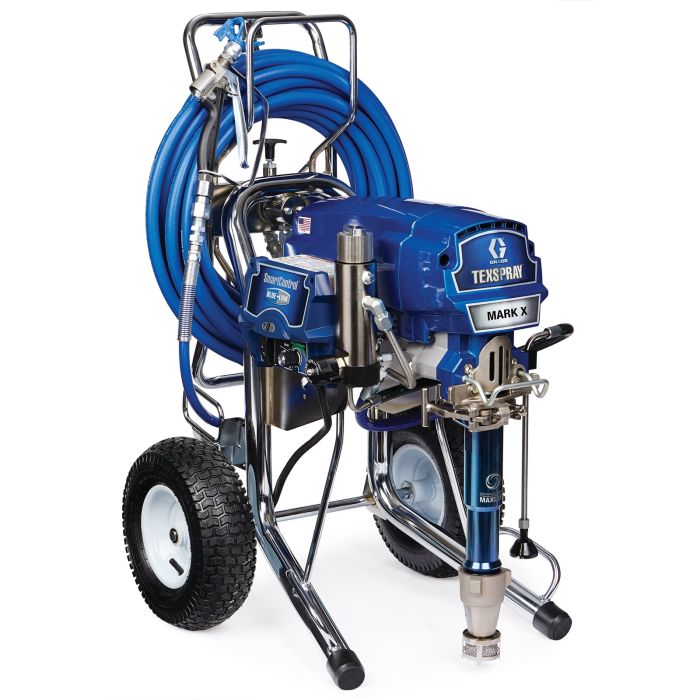

SPRAYER, MARK X, PROCONTRACTOR
THE most powerful electric airless texture sprayer. The TexSpray Mark X 240 volt is the sprayer of choice for serious professional contractors with nearly double the output of the Mark V. It easily sprays skim coat in a Level 5 finish, multiple texture finishes and the all primers and paints.
Loading Price
Part Number
17E609
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- Use longer cords, regardless of voltage fluctuations
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Long Description | TexSpray Mark X ProContractor Series Electric Airless Sprayer |
---|---|
Application Text | Work Smarter, Finish More Jobs. TexSpray Mark ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits. |
Length | 27.5 |
Height | 42 |
Width | 33.25 |
Number of Guns | 1 |
Overall Height (in) | 39 |
Overall Length (in) | 30 |
Overall Width (in) | 24 |
Maximum Tip Size Gun 1 (in) | 0.045 |
Maximum Working Pressure (psi) | 3300 |
Minimum Generator Power (W) | 5000 |
Motor Type | MaxPower |
Power Rating (HP) | 4.0 |
Power Rating (kW) | 2.98 |
Type | Airless Sprayer |
Voltage (V) | 230 |
Volume Per Cycle (cycles/gal) | 70 |
Weight (lb) | 178 |
Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, PEEK, Stainless Steel, Brass, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, PTFE, Nylon |
Power Rating (W) | 2982.8 |
Power Source | Electric |
Pressure Control Type | SmartControl 4.0 |
Pump Mount Type | ProConnect 2 |
Pump Rod Type | MaxLife |
Pump Sleeve Material | MaxLife |
Includes | Inline Heavy-Duty Texture Gun;RAC X LTX 531 Spray Tip;RAC X LTX 541 Spray Tip;RAC X Guard;1/2 in x 50 ft BlueMax II Airless Hose;3/8 in x 11 ft 10 in Airless Whip Hose |
Amperage (A) | 16 |
Convertible | Non-Convertible |
Features | Heavy-Duty Prime Valve, WatchDog, Endurance Vortex MaxLife Extreme Pump, MaxPower Brushless, MaxFlo 2, Crushproof Inlet Strainer, Easy Out Filter, QuikReel, BlueLink System, Advantage Drive, ProConnect 2, SmartControl 4.0 |
Compatible Replacement Pump | 17H835 |
Fluid Outlet Size (in) | 1/2 |
Fluid Outlet Thread Type | NPSM |
Maximum Flow Rate (GPM) | 2.1 |
Maximum Sound Pressure Level (dB(A)) | 82 |
Hose Reel Type | QuikReel |
Frame Configuration | Hi-Boy |
Gun Included | No |
Maximum Tip Size (in) | 0.045 |
