SYSTEM, A25, P2 GUN

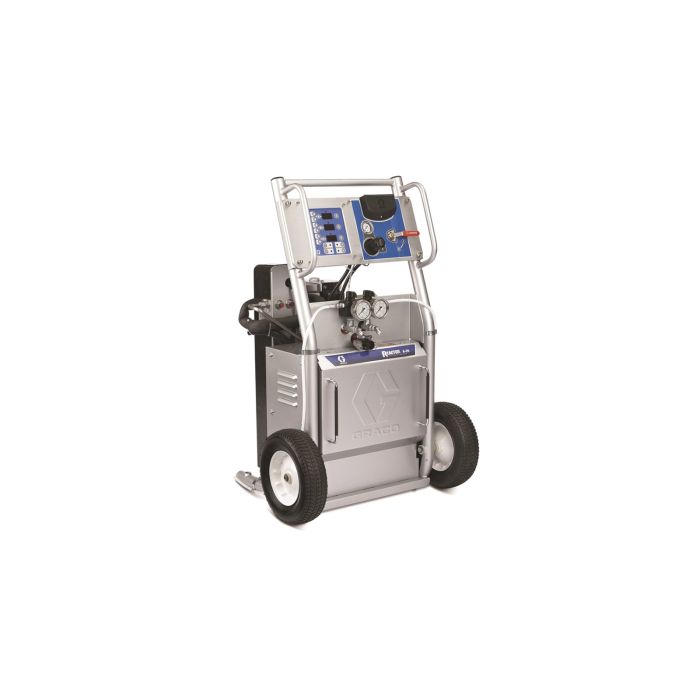

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you're spraying at maximum flow rates - resulting in better quality foam.
Checking stock status...
Part Number
P22614
Loading price...
$0.00
Description / SYSTEM,A25, P2 GUN
Maintains temperature setpoints for better yield Maintains consistent output pressure for uniform spray pattern Easy to operate and maintain Best choice for affordability and durability
DataTrak Control
- Resettable counter tracks material usage
Three Heat Zones
- Three independent heat zones – ISO, resin and hose heat
- Provide accurate heat control for reliable spraying to handle different chemical viscosities
- Digital temperature controls
Recirculation Manifold
- A quick, easy way to balance system pressures
NXT Air Motor
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- Air valve provides smooth and rapid changeover
NXT Air Motor
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- Air valve provides smooth and rapid changeover
Quick Knockdown Lower Pumps
- For easy disassembly and maintenance
ISO Pump Lube System
- Prevents isocyanate crystallization on the pump seal and shaft
More Information
| Maximum Flow Rate (lb/min) | 25 |
|---|---|
| Maximum Fluid Viscosity (cP) | 1500 |
| Maximum Mix Ratio | 1:1 |
| Minimum Fluid Viscosity (cP) | 250 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Air Consumption (SCFM) | 28 scfm at 1500 psi |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Gun Type | Probler P2 |
| Hose Length (ft) | 50;10 |
| Material Application | Polyurethane Foam |
| Remote Mix Manifold Included | No |
| Sound Power Level (dB(A)) | 80.1 |
| Sound Pressure Level (dB(A)) | 70.2 |
| Type | Proportioning Package |
| Weight (lb) | 310 |
| Wetted Material | Stainless Steel, Carbon Steel, Aluminum, Chrome, PTFE, Fluoroelastomer, Nylon |
| Pump Filter Included | No |
| Primary Fluid Heater Included | No |
| Pressure Type | Low Pressure |
| Overall Depth (in) | 30 |
| Overall Height (in) | 43.5 |
| Overall Width (in) | 29 |
| Phase | 1, 3 |
| Power Rating (HP) | 12.07 |
| Power Rating (kW) | 9 |
| Power Rating (W) | 9000 |
| Power Source | Air |
| Includes | Proportioner;Probler P2 Gun;Heated Hose;Wheels;DataTrak |
| Description | Reactor A25 Proportioner Package, Probler P2 Gun, Wheels, DataTrak, 230/400 V |
| Application Text | For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute. |
| Applicator Type | Manual |
| Compatible Material | Plural Components |
| Component A Inlet Size (in) | 3/4 |
| Component A Thread Gender | Female |
| Component A Thread Type | NPT |
| Component B Inlet Size (in) | 3/4 |
| Component B Thread Gender | Female |
| Component B Thread Type | NPT |
| Component Type | Two Component |
| Application | Spray Foam |
| Amperage (A) | 18.5 @ 380 V ac (3-Phase WYE);32 @ 230 V ac (3-Phase Delta);40 @ 230 V ac (1-Phase) |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Requires Hazardous Shipping | No |
