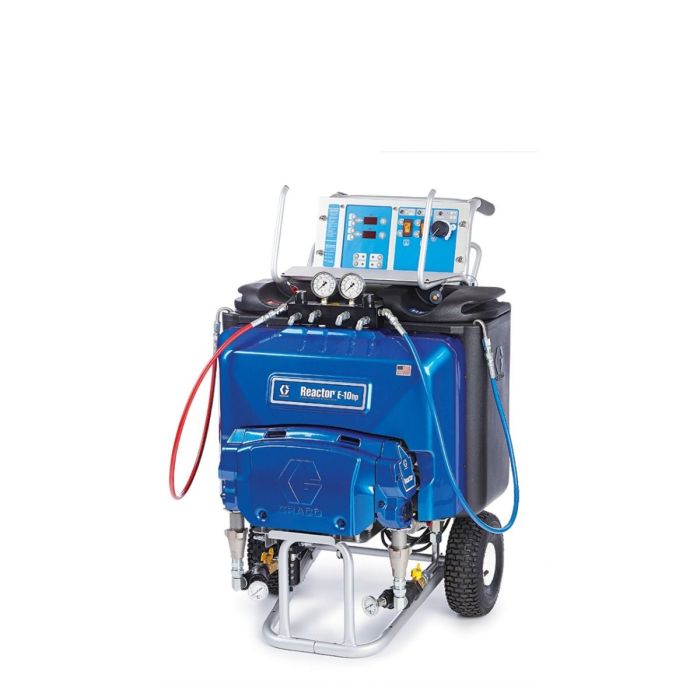

Reactor E-10HP Bare Proportioner, NA, 230 V, Graco
The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. It's a smart, affordable investment that will help your business grow
Checking stock status...
Part Number
24T900
Loading price...
$0.00
Description / Reactor E-10HP Bare Proportioner, NA, 230 V, Graco
Digital heat controls
- Allows you to enter the exact temperatures you need
- Uses the same circuit boards as a standard Reactor
Single knob motor operation
- Intuitive, easy to use
Insulated tanks
- Double-wall insulated to retain heat
- Smooth interior lining for easy cleaning
- Improved seal design on lid for better moisture control
Low level sensors
- Indicates when material is low (1 gal / 3.8 L remaining)
- No contact with materials - prevents buildup
Boost heat
- Directs unused power from the motor circuit to additional heater rods
- Additional heater power brings material to desired temperatures faster during recirculation mode
Robust hybrid heater
- More power, faster material heating means more uptime
Motor
- Offers 50% more power than the Reactor E-10
- Provides improved spray performance with reduced pressure drop
Quick knockdown lower pumps
- Easy disassembly and maintenance
Temperature gauges in Y-strainers
- Provides accurate tank temperature readings
Portable
- Fits through standard doorways
- Plugs into standard 120V or 230V outlets
- Rugged wheels for extreme jobsites
- No need for generator
Wide tank opening
- Easy material loading and easy to clean
More Information
| Maximum Flow Rate (GPM) | 1 |
|---|---|
| Maximum Hose Length (ft) | 105 |
| Maximum Mix Ratio | 1:1 |
| Maximum Spray Pressure (psi) | 2500 |
| Maximum Working Pressure (psi) | 3000 |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Material Application | Polyurea |
| Pump Filter Included | No |
| Remote Mix Manifold Included | No |
| Sound Pressure Level (dB(A)) | 85.6 |
| Tank Capacity (gal) | 6 |
| Type | Proportioning System |
| Wetted Material | Stainless Steel, Carbide, Carbon Steel, Brass, Aluminum, UHMWPE, Chrome, PTFE |
| Primary Fluid Heater Included | No |
| Pressure Type | Low Pressure |
| Overall Depth (in) | 36 |
| Overall Height (in) | 46 |
| Overall Width (in) | 29 |
| Power Rating (HP) | 7.40 |
| Power Rating (kW) | 5.52 |
| Power Rating (W) | 5520 |
| Power Source | Electric |
| Includes | North America Cord Adapter |
| Description | Reactor E-10HP Bare Proportioner, NA, 230 V |
| Application Text | Entry-level system for pure and hybrid polyurea coatings. |
| Compatible Material | Plural Components |
| Component Type | Two Component |
| Applicator Type | Manual |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Air Outlet Size (in) | 1/4 |
| Air Outlet Thread Type | NPSM |
| Amperage (A) | 12 |
| Application | Protective Coatings |
| Requires Hazardous Shipping | No |
