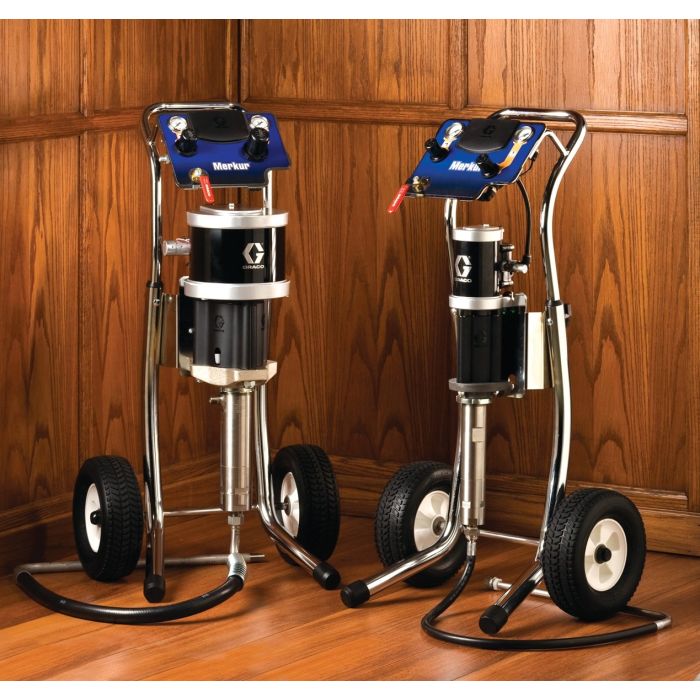

SYSTEM, PUMP, 15:01, 150CC, CRT SMT
Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Loading Price
Part Number
G15C78
Proven to outperform and outlast other pumps in their class Highest technology air motor on the market Low air consumption for increased efficiency Muffler provides low operating noise levels External valve access allows for easy servicing and online replacement to minimize downtime Operator Control Panel located at operator height for easy setting and monitoring Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service
| Length | 0 |
|---|---|
| Height | 39.6 |
| Width | 0 |
| Long Description | 15:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Cart Mount, Pump Air Controls, DataTrak |
| Pressure Type | High Pressure |
| Power Source | Air |
| Mount Type | Cart Mount |
| Maximum Working Pressure (psi) | 1500 |
| Pump Type | Pneumatic Piston Pump |
| Includes | Pump Only Air Controls;DataTrak Monitor |
| Wetted Material | Stainless Steel, UHMWPE, Tungsten Carbide with 6% Nickel, PTFE, Nylon |
| Weight (lb) | 100 |
| Type | Bare Package |
| Technology Type | Airless |
| Sprayer Type | High Pressure |
| Spray Type | No Applicator |
| Maximum Flow Rate (GPM) | 2.4 |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Inlet Size (in) | 1 |
| Compatible Material | High Solids, Lacquer, Topcoats, Enamel, Varnish, UV Coating, Waterborne, Solventborne, Acid Catalysts, Single Components |
| Fluid Outlet Thread Type | NPT |
| Gun Included | No |
| Maximum Air Inlet Pressure (psi) | 100 |
| Hose Inlet Diameter (in) | 3/16 |
| Gun Type | No Applicator |
| Gun Technology | Bare Package |
| Gun Model | No Applicator |
