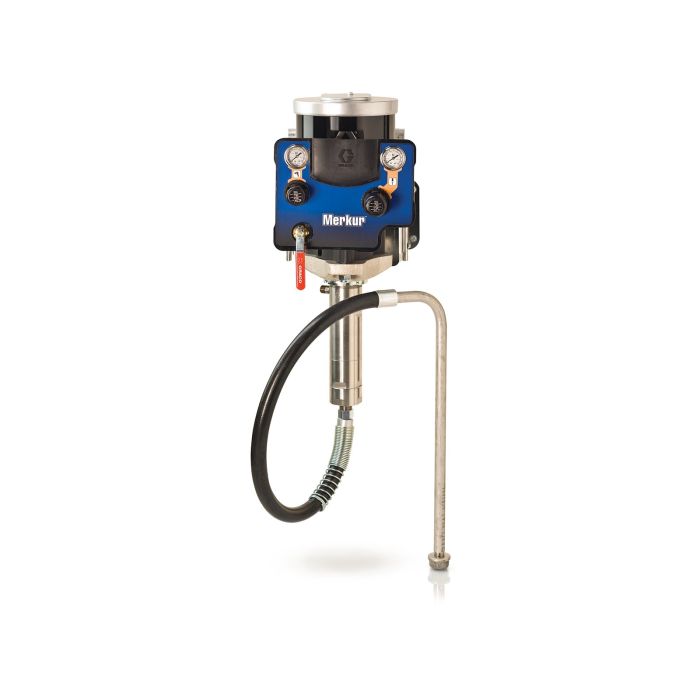

SYSTEM PUMP 48:01 75CC WA SMT
Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Loading Price
Part Number
G48W04
Proven to outperform and outlast other pumps in their class Highest technology air motor on the market Low air consumption for increased efficiency Muffler provides low operating noise levels External valve access allows for easy servicing and online replacement to minimize downtime Operator Control Panel located at operator height for easy setting and monitoring Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service
| Long Description | 48:1 Merkur Pump, 1.2 gpm (4.5 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter, DataTrak |
|---|---|
| Length | 0 |
| Width | 0 |
| Mount Type | Wall Mount |
| Maximum Working Pressure (psi) | 4800 |
| Motor Type | Pneumatic |
| Standards Met | ATEX;CE;ETL |
| Type | Bare Package |
| Weight (lb) | 78 |
| Wetted Material | Stainless Steel, UHMWPE, Tungsten Carbide with 6% Nickel, PTFE, Nylon |
| Power Source | Air |
| Pressure Type | High Pressure |
| Pump Type | Pneumatic Piston Pump |
| Includes | Pump Only Air Controls;Suction Hose;Fluid Filter;DataTrak Monitor |
| Convertible | Non-Convertible |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 1.2 |
| Maximum Hose Length (ft) | 25 |
| Gun Included | No |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Gun Type | No Applicator |
| Hose Inlet Diameter (in) | 3/16 |
