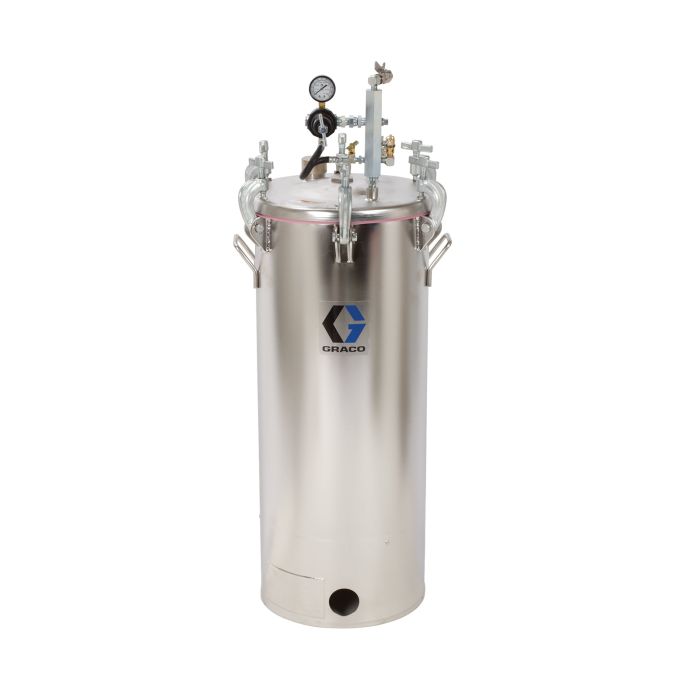

TANK HIGH PRESSURE 15 GAL SS
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
Loading Price
Part Number
236151
ASME rated to ensure it meets factory standards High quality stainless steel design is compatible with many materials Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
Inlet Thread Gender | Male |
---|---|
Inlet Size (in) | 1/4 |
Width | 22.8 |
Inlet Thread Type | NPT |
Maximum Volume Capacity (gal) | 15 |
Wetted Material | Polyamide, PET, Stainless Steel, Santoprene |
Weight (lb) | 92 |
Type | Tank |
Overall Width (in) | 19 |
Overall Height (in) | 44.57 |
Outlet Thread Type | NPSM |
Outlet Thread Gender | Male |
Outlet Size (in) | 3/8 |
Maximum Working Pressure (psi) | 100 |
Long Description | 15 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 44.6 in (113.2 cm), 92 lbs (42 kg), SST |
Length | 22.8 |
Height | 49.2 |
