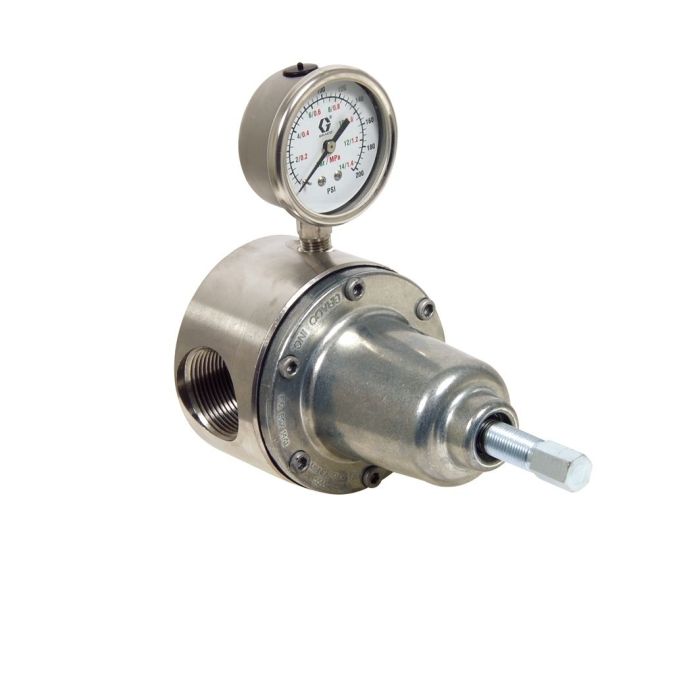

Back Pressure Regulator, Low Pressure Corrosion Resistant, Graco
Max Pressure psi: 180, Regulated Pressure psi: 0-180, Max Delivery gpm: 15, Max Viscosity CPS: 1000, Wetted Parts: SST, Carbide, Type: Spring, Inlet/Outlet: 1-1/4 F 1-1/4 F, Gauge Port: 1/4 F, Gauge Included: Yes
Checking stock status...
Part Number
916154
Loading price...
$0.00
Description / Back Pressure Regulator, Low Pressure Corrosion Resistant, Graco
Stainless steel wetted materials are compatible with catalyst and waterborne materials Hardened stainless steel seat ensure low wear and long life PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness Large orifice accommodates high volume flow rates Air operated models available for automated control, Conversion kit (15J498)
More Information
| Includes | Gauge |
|---|---|
| Gauge Port Type | NPT |
| Gauge Port Size (in) | 1/4 |
| Compatible Material | Catalyst, Waterborne |
| Inlet Size (in) | 1-1/4 |
| Inlet Thread Type | NPT |
| Wetted Material | Stainless Steel, Celcon Diaphragm, PTFE, Nylon Fabric Base With Impregnated Buna-N |
| Type | Back Pressure Regulator |
| Outlet Thread Type | NPT |
| Outlet Size (in) | 1-1/4 |
| Minimum Regulated Pressure (psi) | 5 |
| Maximum Working Pressure (psi) | 300 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Regulated Pressure (psi) | 200 |
| Maximum Flow Rate (GPM) | 15 |
| Item Description | Max Pressure psi: 180, Regulated Pressure psi: 0-180, Max Delivery gpm: 15, Max Viscosity CPS: 1000, Wetted Parts: SST, Carbide, Type: Spring, Inlet/Outlet: 1-1/4 F 1-1/4 F, Gauge Port: 1/4 F, Gauge Included: Yes |
| Description | Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand |
| Requires Hazardous Shipping | No |
