Graco Fusion FX Spray Gun

The Smallest, Lightest, Best Balanced Gun Ever Built

Introducing the Fusion FX, the biggest breakthrough technology in spray foam designed to deliver the highest quality results. Created with the contractor in mind; built to be the smallest, lightest, and best balanced gun ever.

Graco FX9000 Fusion FX BARE Spray Gun
Graco FX9001 Fusion FX Spray Gun w/ spray foam chambers 37, 42, 47

Questions? Call 1-888-CJSPRAY (888-257-7729) to speak with one of our Graco Fusion gun specialists Monday - Friday, 8am-5pm CST!

Fusion FX Spray Gun Highlights:

• Lightest Gun On The Market

• Most Balanced Gun On The Market

• Easiest To Service And Maintain

• Easiest Access to Mix Chamber

• New Spray Technology

FX Size And Weight

Lightest Gun On The Market
Over 30% lighter than the Fusion PC

Gun Design
Narrow front end allows for easy access to small areas, while the lightweight balanced feel helps reduce fatigue

Gun Balance
The most balanced gun in your hand with hoses attached. 9X the improved balance compared to the Fusion PC

FX Service and Maintance

ProConnect FX Cartridge
Replace the FX Cartridge in seconds for a perfect rebuild every time

RapidSwap Mix Chamber
Easily access the mix chamber in seconds without having to disassemble the gun for quick changes of mix chamber sizes, or to clean impingement ports

FX Spray Technology

DuoFlo Valving
ProConnect cartridge design for a perfect rebuild in seconds. DuoFlo valving eliminates side seals and provideds precision control and mixing

QuickFlex Technology

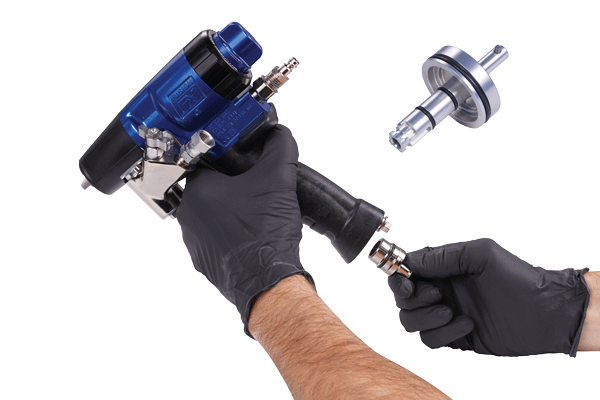

Switch effortlessly between ClearShot and Air Purge modes by easily swapping the air piston, giving you the flexibility to tackle any project with confidence

Front

• Easy access to RapidSwap Mix Chamber
• Small diameter for spraying in tight locations
• Location to clean off air hoses

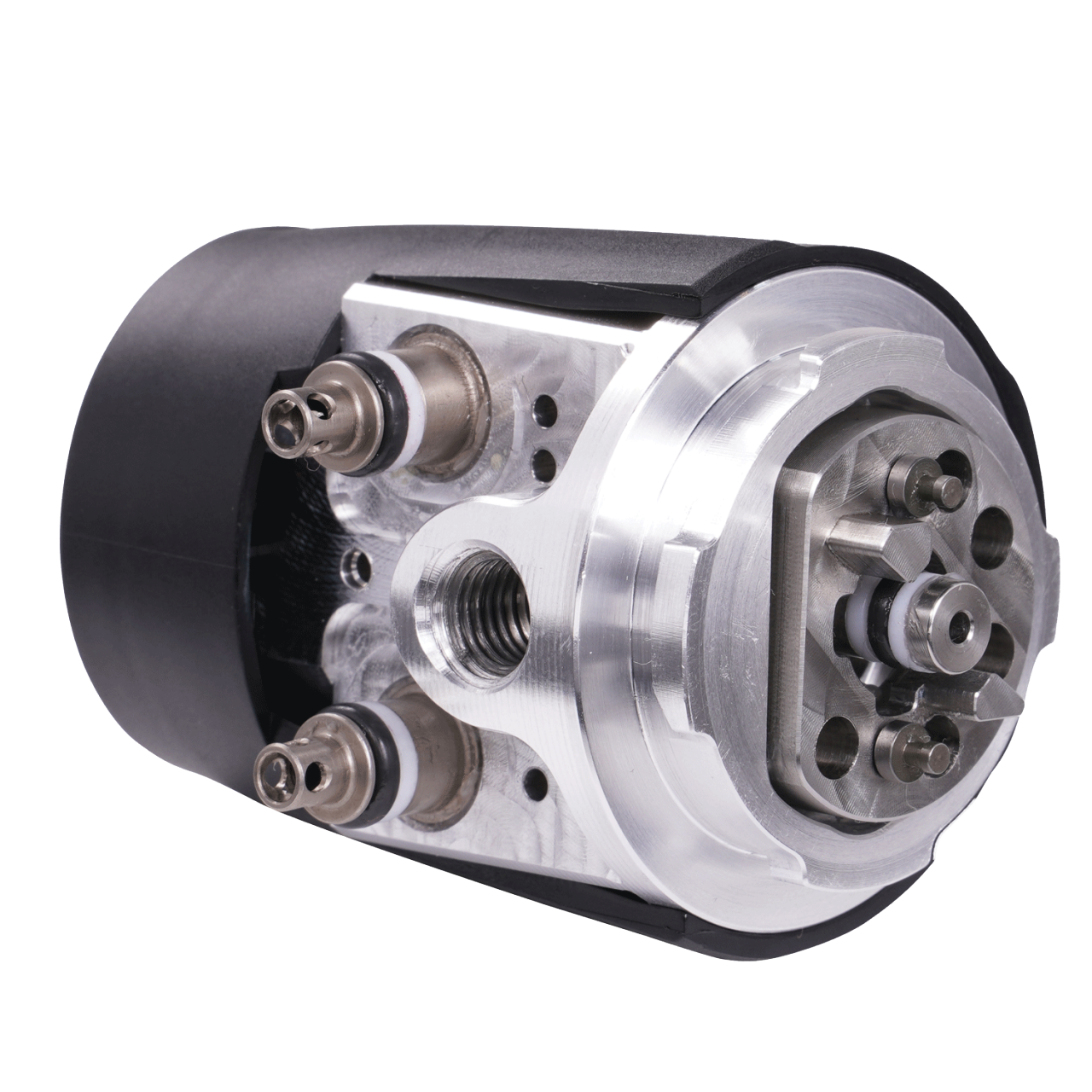

Bottom

• Check valves for clean attachment to hose manifold
• Fluid weep holes for early detection of when a cartridge should be replaced

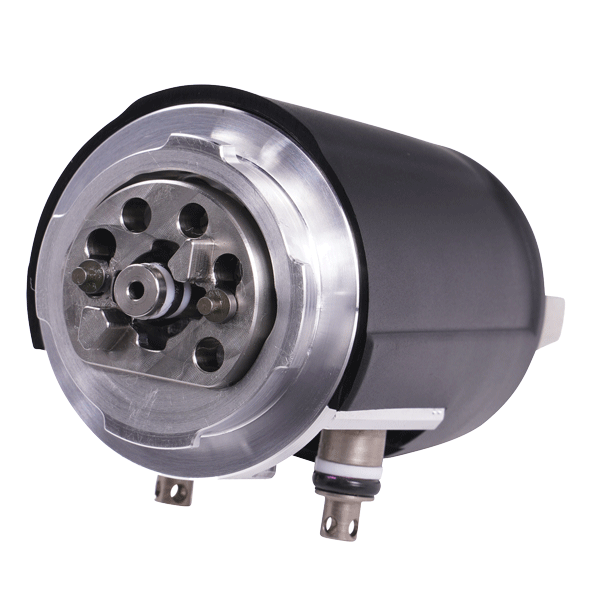

Rear

• Simple attachment to Air Piston
• Fluid connection when using CS Fluid
• Easy access to DuoFlo valves

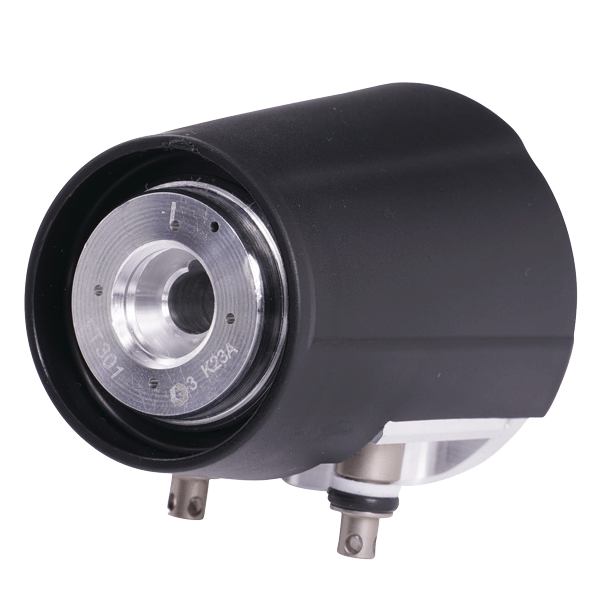

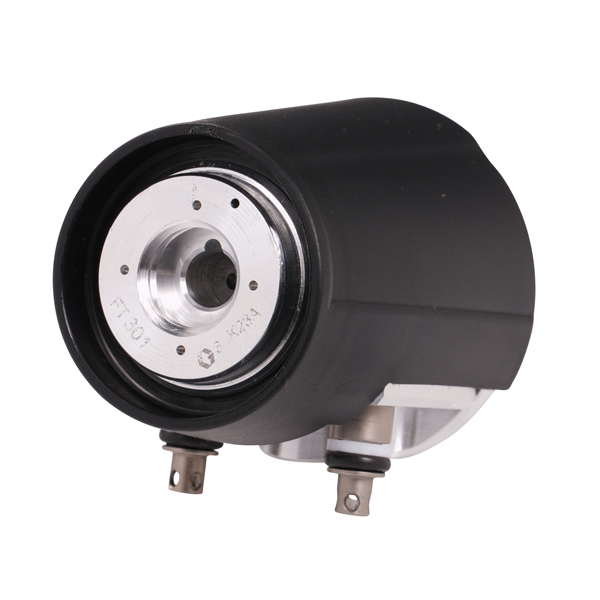

The FX Cartridge

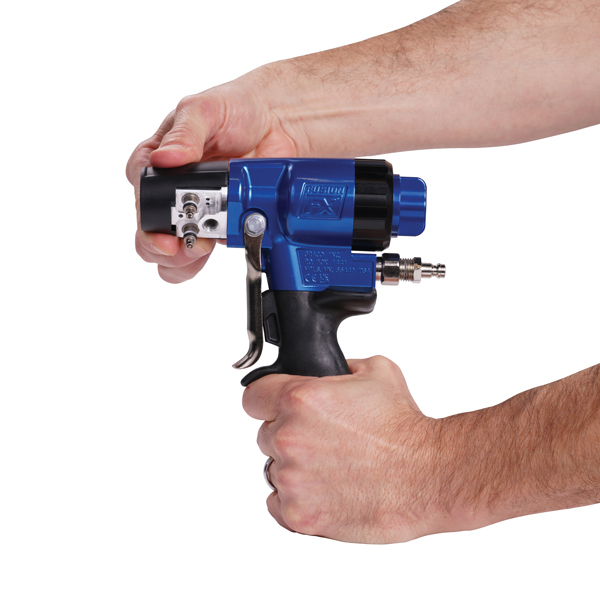

1) Remove hose manifold

2) Twist cartridge 1/8 turn CCW

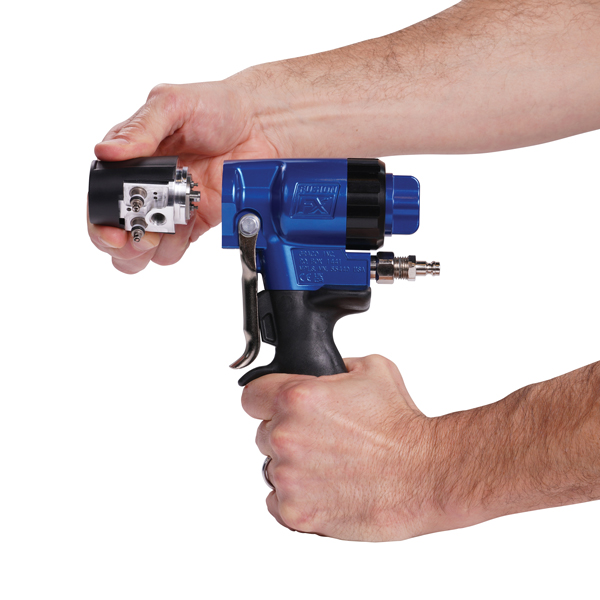

3) Pull cartridge away from gun body

FX Air Cap/Mix Chamber

1) Insert chamber into FX Cartridge making sure alignment pin is at the 12 o'clock position

2) Hand tighten. The tip of the mix chamber should be flush with the air cap

3) Snug air cap tight using a tool to be sure the air cap stand-offs are at the 9 and 3 o'clock positions

ClearShot
For reduced drilling and improved pattern retention. Most effective when spraying closed cell foams. Utilized existing CS tubes.

Air Purge
For traditional spraying, most effective for applying open cell foams and polyureas.

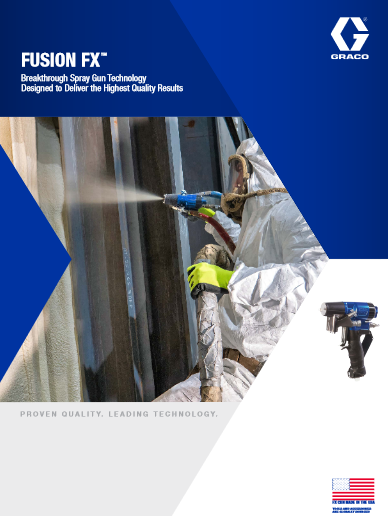

Graco Fusion FX Product and Accessory Brochure

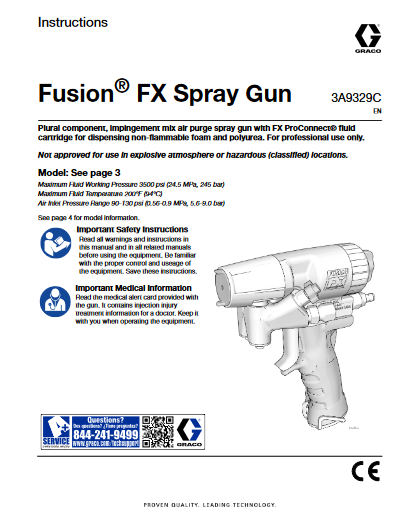

Graco Fusion FX User's Manual
